Barcode Scanner

FEATURES:

· Requires Single 5 Volt Supply
· Fixed Beam or Laser Input
· RS-232 or RS-422 Communications
· Decodes Most Common Barcodes
· User Configurable
· Surface Mount Construction
· 2.9" X 1.6" Circuit Board.
DA1000 picture

DESCRIPTION:
The DA1000 Series Barcode Decoder module is designed for OEM applications. The complete circuit is contained on a 2.9" X 1.6" circuit board and requires only a 5 Volt DC power supply. The unit is designed to accept an input from a digital barcode sensor. The sensor may be a wand, fixed beam scanner, or moving beam laser. The communications is RS-232 with RTS/CTS handshaking or RS-422, Data Only. The module decodes seven standard barcode symbologies and automatically identifies the barcode type being scanned, if more than one type is enabled. All major operating parameters of the decoder can be configured using a serial data terminal, or PC configured as a terminal. Configuration information is stored in non-volatile memory. The board contains a Good Read LED indicator.

TYPICAL APPLICATIONS:
This unit is designed for OEM applications where barcode reading capability needs to be implemented as part of an overall product design. The decoder module saves the designer the task of programming a micro controller to handle these functions. The board can be configured prior to installation, or it can be configured by the host device. Configuration is accomplished through the board's serial port.



SPECIFICATIONS:

Electrical
Power:              +5VDC±5% @ 60ma. Max.
                    Noise and Ripple < 50mV P-P
Input:              TTL Level signal
Communications:     RS-232, baud rate, stop bits, and
                    parity are user configurable. RTS/CTS
                    hardware handshaking. RS-422 is
                    Data Only (no hand shakes).
Environmental
Temperature:        Operating:     0° to 50°C
                    Storage:       -40° to 50°C

CONFIGURATION:
The following characteristics are configurable by the user using a serial terminal or PC configured as a terminal. Barcodes Code Types: Code 39 (normal or extended), Interleaved 2 of 5, UPC/EAN/JAN, Codabar, Code 128, Code 11, and MSI Code. Label Length: to 32 Characters Check Character: For Code 39, Code 11 and Interleaved 2 of 5 UPC Decoding: Enable UPC only, UPC-E Expansion, and supplemental codes. Communications Type: RS-232 or RS-422(Data Only) Baud Rate: 150 to 19,200 Parity mark, Space, Even or Odd Stop Bits One or Two Flow Control: RTS/CTS Hardware Protocol XON/XOFF Software Protocol. Character Delay: A delay between the transmission of each character, up to 150mS. is configurable. Messages: Several messages can be transmitted with the barcode data: Header, Trailer, Scanner Address and No Read Message.

INPUT/OUTPUT CONNECTIONS
Pin No.Signal
1RS232-CTS
2RS232-RTS
3RS232-RxD
4RS232-TxD
5Ground
6+5VDC
7Digital Input
8RS422-RxD(-)
9RS422-RxD(+)
10RS422-TxD(-)
11RS422-TxD(+)

PART NUMBERS
Model DA1000 - RS-232/RS-422 Output

DIMENSIONS

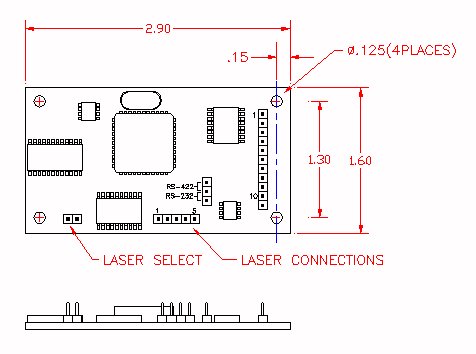

DA1000 Dimensions
