KVM Switch

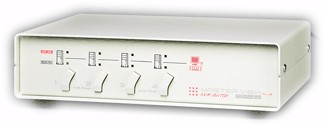

Model:CS-114A

4 Port Master View Plus KVM Switch

Order OnLine $135.95
Or Call 315-252-3741
8AM to 5PM Eastern

Picture of Cable
DESCRIPTION:
· Microsoft Intellimouse, Logitech First Mouse+, Mouse Man+ ... Support
· Mouse Conversion - PS/2 Mouse Controls All Connected PCs - Even Those With Serial Mice
· Hot Pluggable - Add PCs or Remove Connected PCs For Maintenance Without Powering Down the CPU Switch
· One PS/2 Style Keyboard Controls All PCs - Regardless Of Whether They Are Configured For AT or PS/2 Keyboards
· Superior Video Quality - Up To 1920 x 1440 l Easy PC Selection via Front Panel Pushbuttons or Hot Keys
· Auto Scan Mode for Monitoring PCs
· Cascadable To Three Levels - Control Up to 64 PCs From a Single Console
· Keyboard Status (Caps Lock, Num Lock, Scroll Lock), Restored When Switching PCs
· LED Display For Easy Status Monitoring
· Can Use Standard Cables

SPECIFICATIONS:
Function
CS-114A
PC Connection Direct 4
Daisy Chain 64
Port Selection Push button switch, Hotkey, Footswitch
LEDs Selected 4
On Line 4
Power 1
Emulation Keyboard PS/2,PC/AT
Mouse PS/2,Serial
Connectors Keyboard 6 pin mini-DIN Female
Mouse 6 pin mini-DIN Female
Video 15 pin HDB Male / Female
VGA Resolution 1920 x 1440 (Max.); DDC2B
Scan Interval 3, 10, 20, 40 sec.
Housing Metal
Weight 2650 g
Dimensions 224 x 180 x 82 mm (L x W x H)
Cable Requirement PC/AT 2L-1001A (1.8m) / 2L-1003A (3 m)
PS/2 2L-1001P (1.8m) / 2L-1003P (3 m)
Part NumberDescriptionPrice
CS-114A 4 Port Master View Plus KVM Switch $135.95
