KVM Switch

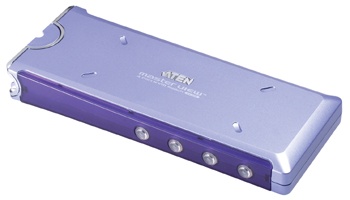

Model:CS-74AC

4 Port Free-Standing KVM Switch including Cables

Order OnLine $118.95
Or Call 315-252-3741
8AM to 5PM Eastern

Picture of Cable
DESCRIPTION:
· Control 4 computers from a single PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse)
· Compact vertical-standing design - custom connector layout
· SPDB-15 connectors for KVM cable connection to the computers & console
· Power On detection - automatically switches to the first powered on port - automatically switches to the next powered on port of the current one is shut down
· Auto scan function to monitor computer operation
· LED display for easy status monitoring
· Easy installation - no software required
· Hot pluggable - add or remove computers without powering down the switch
· Keyboard and mouse emulation for error free booting
· Caps lock, Num lock, and Scroll lock states are saved and restored when switching
· Supports Microsoft IntelliMouse and the scrolling wheel on most mice
· Superior vide quality - up to 1920 x 1440; DDC, DDC2, DDC2B
· Non powered

SPECIFICATIONS:
Function
CS-74AC
PC Connection 4
Port Selection Push button switch, Hotkey
LEDs Selected 4
Emulation Keyboard PS/2
Mouse PS/2
Connectors PC 4 X SPDB-15 F (Yellow)
Console 1 X SPDB-15 M (Yellow)
VGA Resolution 1920 x 1440 (Max.); DDC2B
Scan Interval 5 sec.
Housing Plastic
Weight 245 g
Dimensions 213.5 x 85 x 28 mm (L x W x H)
Cables Included 4 x 2L-5201P cables
Part NumberDescriptionPrice
CS-74AC 4 Port Free-Standing KVM Switch including Cables $118.95
