KVM Switch

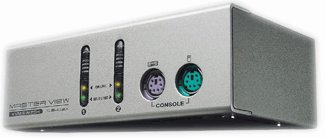

Model:CS-82AC

2 Port Mini Desktop KVM Switch including Cables

Order OnLine $84.95
Or Call 315-252-3741
8AM to 5PM Eastern

Picture of Cable
DESCRIPTION:
· PS/2 Compatible Mouse Support - Microsoft Intellimouse Pro, Logitech FirstMouse Support
· Keyboard and Mouse Emulation for Error Free PC Booting
· Easy to Install - No Software Required
· Easy to Operate
· PC Selection Via Push Button Switches or Hot Key
· Auto Scan Function to Monitor PC Operation
· Hot Pluggable
· Superior Video Quality
· Up to 1920 x 1440, DDC2, DDC2B, DDC
· Controls 2 PCs with One PS/2 Keyboard, PS/2 Mouse, and Monitor


SPECIFICATIONS:
Function
CS-82AC
PC Connection 2
Port Selection Push button switch, Hotkey
LEDs Selected 2
Emulation Keyboard PS/2, AT
Mouse PS/2
Connectors Keyboard 1 x 6 pin min-DIN Female (PS/2)-Console
2 x 6 pin mini-DIN Female (PS/2)-CPU Port
Mouse 1 x 6 pin min-DIN Female (PS/2)-Console
2 x 6 pin mini-DIN Female (PS/2)-CPU Port
Video 1 HDB-15 Female (Std. VGA/SVGA)-Console
2 HDB-15 Male (Std. VGA/SVGA)-CPU Port
VGA Resolution 1920 x 1440 (Max.); DDC, DDC2B, DDC2AB
Scan Interval 5 sec.
Housing Metal
Weight 420 g
Dimensions 128 x 75 x 45 mm (L x W x H)
Cables Included 2 X 2L-5001P/C(1.2m)
Part NumberDescriptionPrice
CS-82AC 2 Port Mini Desktop KVM Switch including Cables $84.95
