RS232 TO RS485 Converter
Model:IC-485IP-1F

RS232 to RS-485/422 Converter




Model: IC-485IP-1M

RS232 to RS-485/422 Converter



Model: IC-485IP-2

RS232 to RS-485/422 Converter
$34.95 RS232 TO RS485 Converter
Order OnLine
Or Call 315-252-3741
8AM to 5PM Eastern

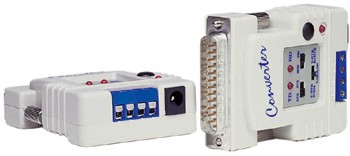

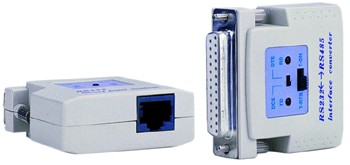

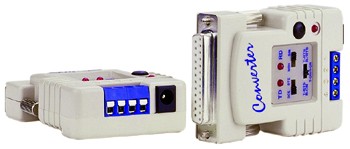

IC-485IP-1F PictureIC-485IP-1M PictureIC-485IP-2 Picture

DESCRIPTION:
· Easy to configure
· DTE/DCE selectable
· RTS/CTS control Full/Half duplex
SPECIFICATIONS:
Model IC-485IP-1F IC-485IP-1M IC-485IP-2
RS232 Connector DB-25 FemaleDB-25 Male DB-25 Female
RS485 Connector 4 Screw terminal Blk 4 Screw terminal Blk RJ-45 Female
RTS/CTS Control
RTS/CTS Control Full/Half Duplex
LED Indicators
TD/RD/External DC Power
Power Source
Interface powered, DC9V 300mA power acceptable
Baud Rate
Up to 128 Kbps

Model Description Price Each
IC-485IP-1F RS-232 to RS-485/422 Converter Female to Terminal US$34.95
IC-485IP-1M RS-232 to RS-485/422 Converter Male to Terminal US$34.95
IC-485IP-2 RS-232 to RS-485/422 Converter Female to RJ-45 US$34.95
